— PROJECTS AND CASE STUDIES —
Commercial coatings
project work across Arizona.
Quality beats quantity on a portfolio page. Three well-documented projects tell a commercial buyer more than fifteen phone snapshots, so this page grows as the work is photographed properly rather than padded to look busy.
— FLAGSHIP CASE STUDY —
Iron Mountain, data center coatings
Iron Mountain is our flagship data center client. Data center work carries the highest qualification barrier in this trade, which is exactly what makes it worth publishing.
The challenge
Coating work inside a live data hall removes most of the tools a painting crew normally relies on. Spraying is out because atomized material circulates into the air handling and into the machines. Aluminum ladders are out near live electrical systems. Reused equipment is out because of dried material flakes. Access is controlled and scheduled rather than open.
Our approach
We ran the documented mission-critical protocol: rolling only with no spraying, brand-new buckets every day, new extension poles, non-conductive fiberglass ladders, equipment cleaned spotless before entry, and sealed containment maintained around the work area. Crews were background-checked W2 employees briefed on FOD elimination and ESD control before entering.
Project snapshot
Client
Iron Mountain Data Center
Facility type
Mission-Critical Data Center
Location
Phoenix, Arizona - AZP-1 Campus:
615 S. 48th St, Phoenix, AZ
Approximate size
~165,000 sq. ft. facility (Exterior facade & infrastructure painting)
Duration
4 Weeks (1 Month)
Coating systems
High-pressure wash decontamination, complete crack and substrate repair, masonryprimer, and a two-coat spray-and-back-roll application.
Work in Action
DL Coatings LLC completed a full exterior protective coatings overhaul at the Iron Mountain AZP-1 data center facility in Phoenix, Arizona.
Working on a strict four-week timeline within an active mission-critical environment, our MEWP-certified technicians executed complete substrate preparation, including high-pressure wash cleaning, hairline crack sealing, and structural patching.
Following surface repairs, our crew applied a high-adhesion exterior masonry primer, followed by a two-coat spray-and-back-roll application of Sherwin-Williams Emerald Rain Refresh—formulated with self-cleaning technology that sheds dirt upon rain contact to maintain long-term exterior durability.
The project also encompassed utility line identification coatings, protective roll-up door refinishing, and OSHA-compliant safety yellow bollards, all completed with zero operational downtime.
— CASE STUDY —

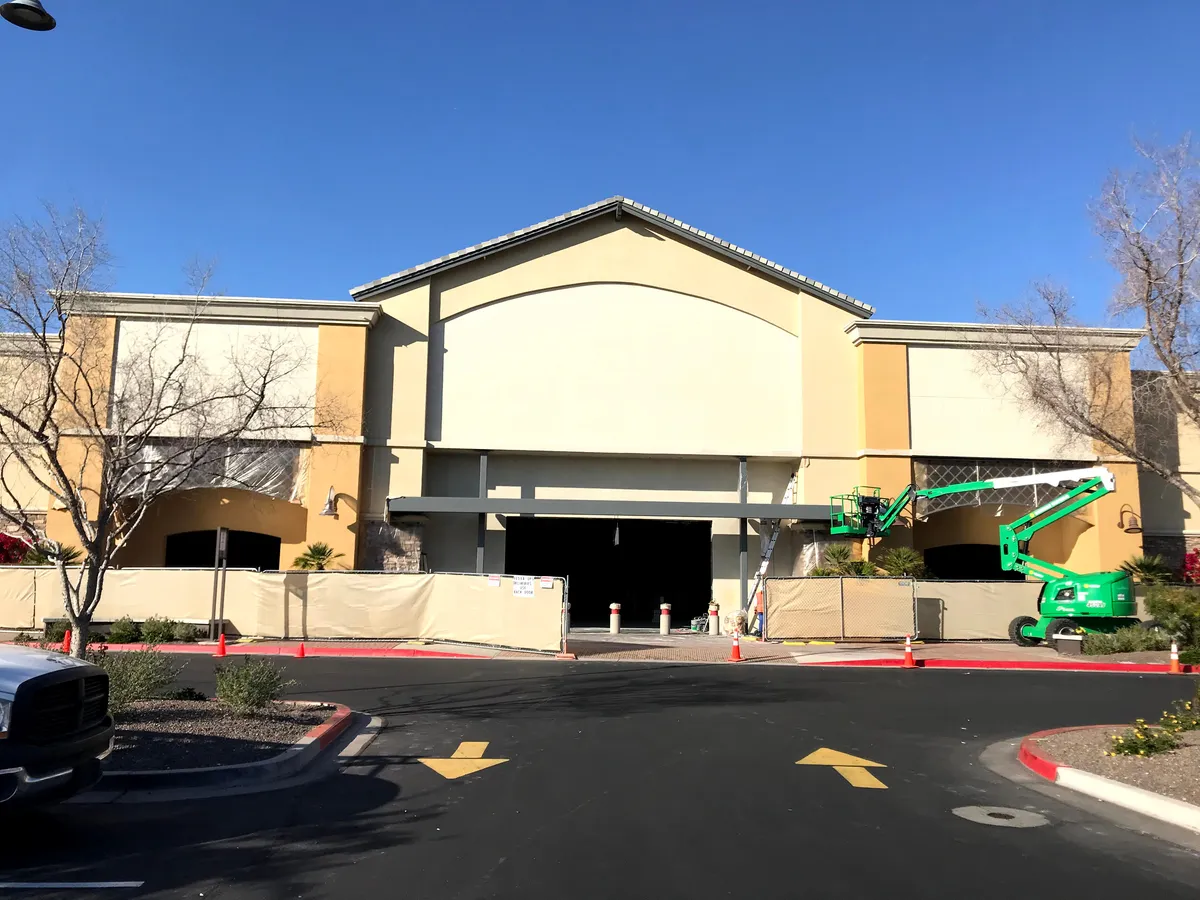

Bob's Discount Furniture
Work in Action
Operating as an industrial and commercial painting contractor, DL Coatings LLC completed a rapid exterior facade overhaul for Bob's Discount Furniture on Gilbert Road. Delivering a fast-track project under tight scheduling deadlines, our MEWP-certified team finished the entire exterior in under one week with zero disruption to daily shopping center traffic.
Our crew executed meticulous surface preparation, beginning with high-pressure washing to strip contaminants, followed by crack sealing and structural patch repairs. After applying an exterior bonding primer, our painters delivered a two-coat spray application, backed by full back-rolling, to lock in uniform texture and long-term weatherproofing. Utilizing boom lifts, containment barricades, and complete PPE safety compliance, DL Coatings LLC restored the commercial building envelope to pristine brand standards.
Project snapshot
Client
Bob's Discount Furniture
Facility type
Retail Commercial Center
Location
Mesa, Arizona
1828 S. Gilbert Rd, Mesa, AZ
Approximate size
~35,000 sq. ft. anchor building facade
Duration
Under 1 Week (5 Days)
Coating systems
High-pressure wash decontamination, complete substrate crack and surface repair, high-adhesion masonry primer, followed by a multi-coat spray-and-back-roll acrylic coating system
— CASE STUDY —

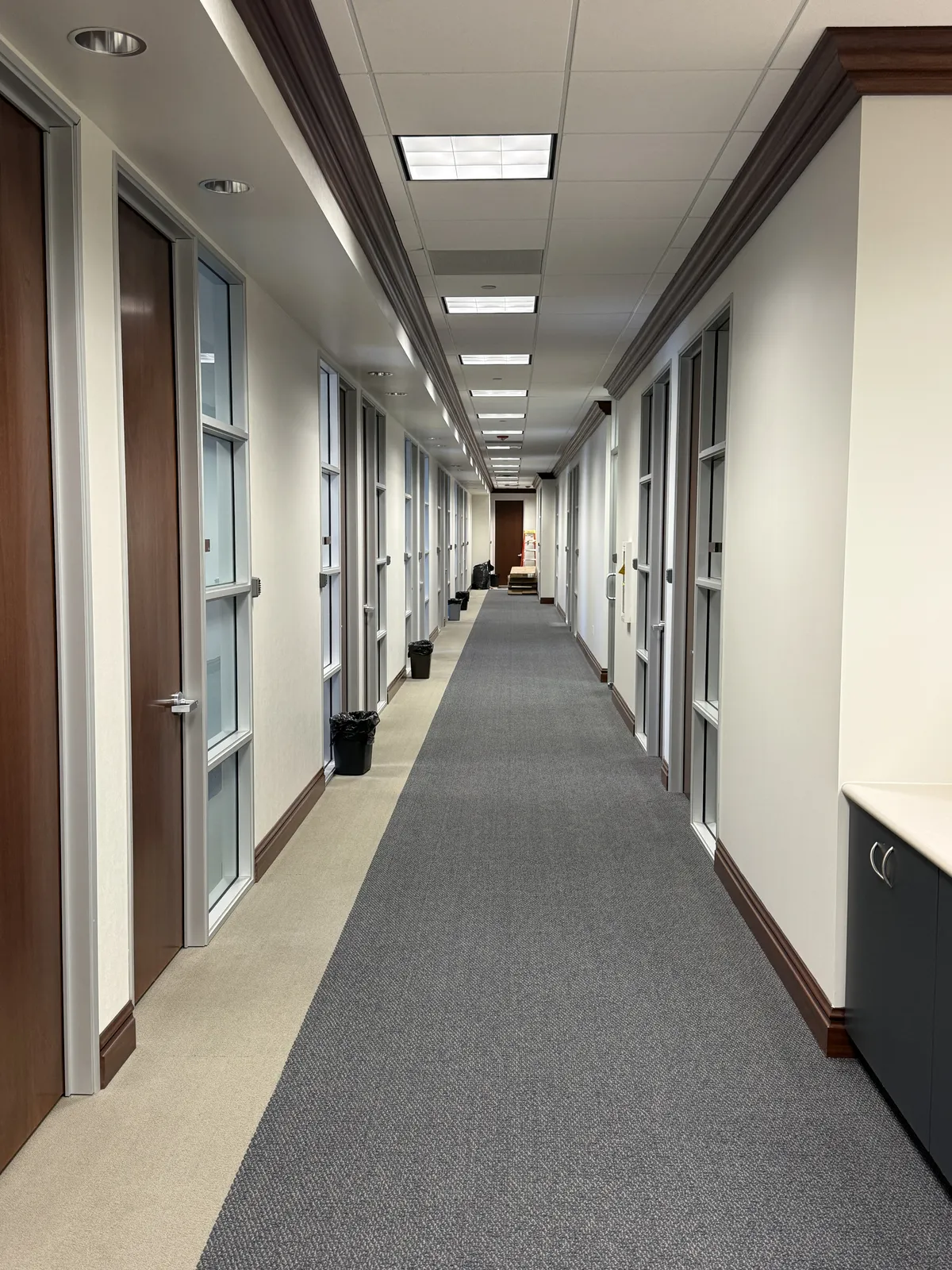

Multi-Tenant Corporate & Professional Offices
Work in Action
Operating as an industrial and commercial painting contractor, DL Coatings LLC completed a rapid interior transformation across high-traffic executive corridors and individual professional suites. Because the facility remains active seven days a week, our crew operated exclusively on overnight shifts starting at 5:00 PM to eliminate downtime and ensure zero disruption to working tenants.
Speed, cleanliness, and containment defined this project. Our technicians masked all hardwood crown molding, architectural door frames, and glass sidelights while laying full floor protection over finished carpets. Working cleanly through the night, the crew patched drywall imperfections and rolled out uniform, low-VOC architectural coatings—packing out before morning business hours with zero paint odor or mess left behind.
Project snapshot
Client
Corporate Professional Office Suites
Facility type
Professional Commercial Office Building & Executive Corridors
Location
Phoenix Metropolitan Area, Arizona
Approximate size
~12,000 – 18,000 sq. ft. (Interior suites, perimeter drywall, and extended central corridors)
Duration
Fast-track completion executed during dedicated night and weekend shifts (starting at 5:00 PM)
Coating systems
Comprehensive floor-to-carpet drop protection, perimeter baseboard and millwork masking, drywall patch repair, followed by premium, low-VOC washable commercial interior wall finishes
— CASE STUDY —

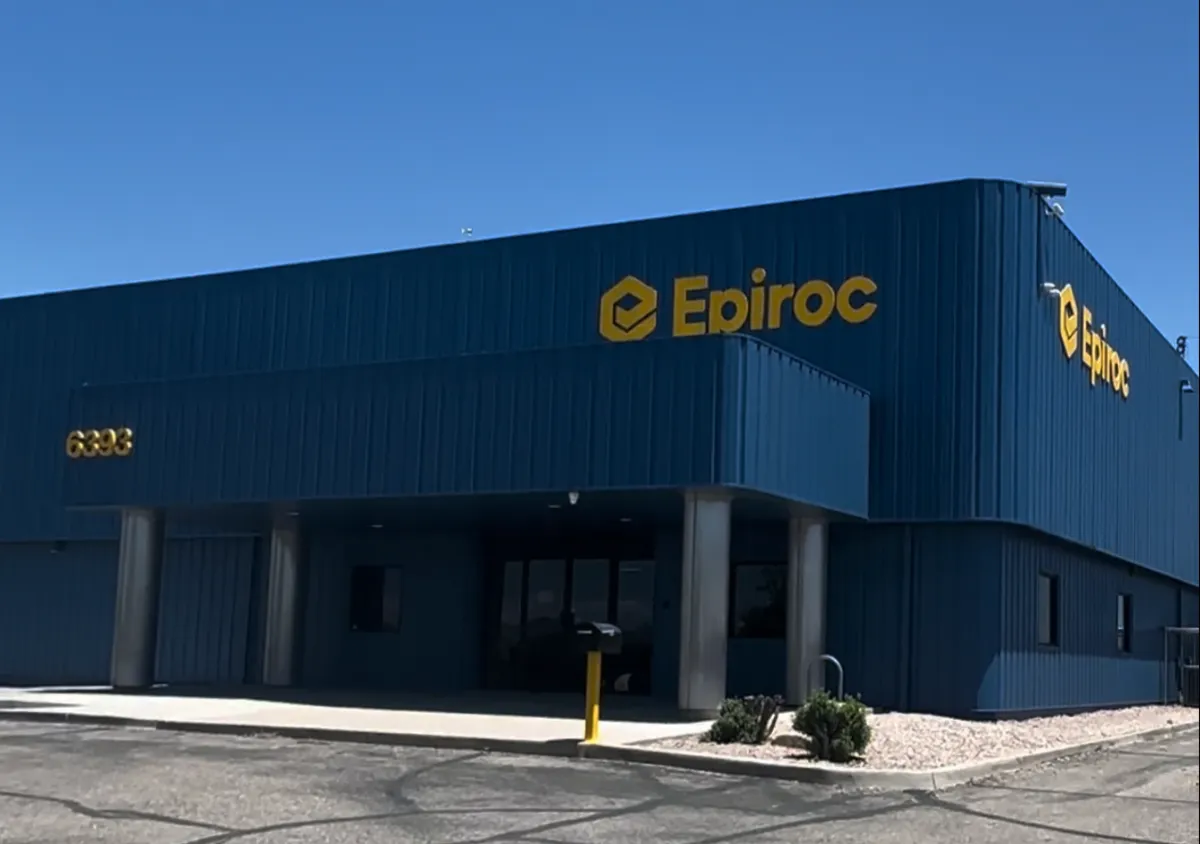

Epiroc Mining Facility & Regional Office
Work in Action
Serving as an industrial and commercial painting contractor, DL Coatings LLC revitalized the regional operations office for mining and infrastructure leader Epiroc in Tucson, Arizona. Because the facility runs intensive weekday corporate and equipment operations, our crew scheduled and finished the entire exterior project exclusively over a single three-day weekend window—delivering the facility ahead of schedule with zero disruption.
To restore the faded, sun-damaged corrugated metal building envelope, our technicians executed precision pressure washing to strip heavy desert grime, chalking, and oxidation. Using aerial boom lifts equipped with full harness fall-arrest systems, our certified crew applied Sherwin-Williams Pro Industrial Direct-to-Metal (DTM) coating in vibrant Aztec Blue. The high-adhesion DTM system provides corrosion resistance, UV-stable color retention, and chemical protection against harsh southern Arizona weathering.
Project snapshot
Client
Epiroc
Facility type
Industrial Mining Equipment Office & Service Facility
Location
Tucson, Arizona
6393 S. Palo Verde Rd, Tucson, AZ
Approximate size
~20,000 – 25,000 sq. ft. industrial metal structure
Duration
5 Days within 3 weekends (Completed strictly during scheduled weekend shifts)
Coating systems
High-pressure wash decontamination, complete surface prep, and a high-build spray application of Sherwin-Williams Pro Industrial DTM Acrylic Coating in Aztec Blue
— CASE STUDY —

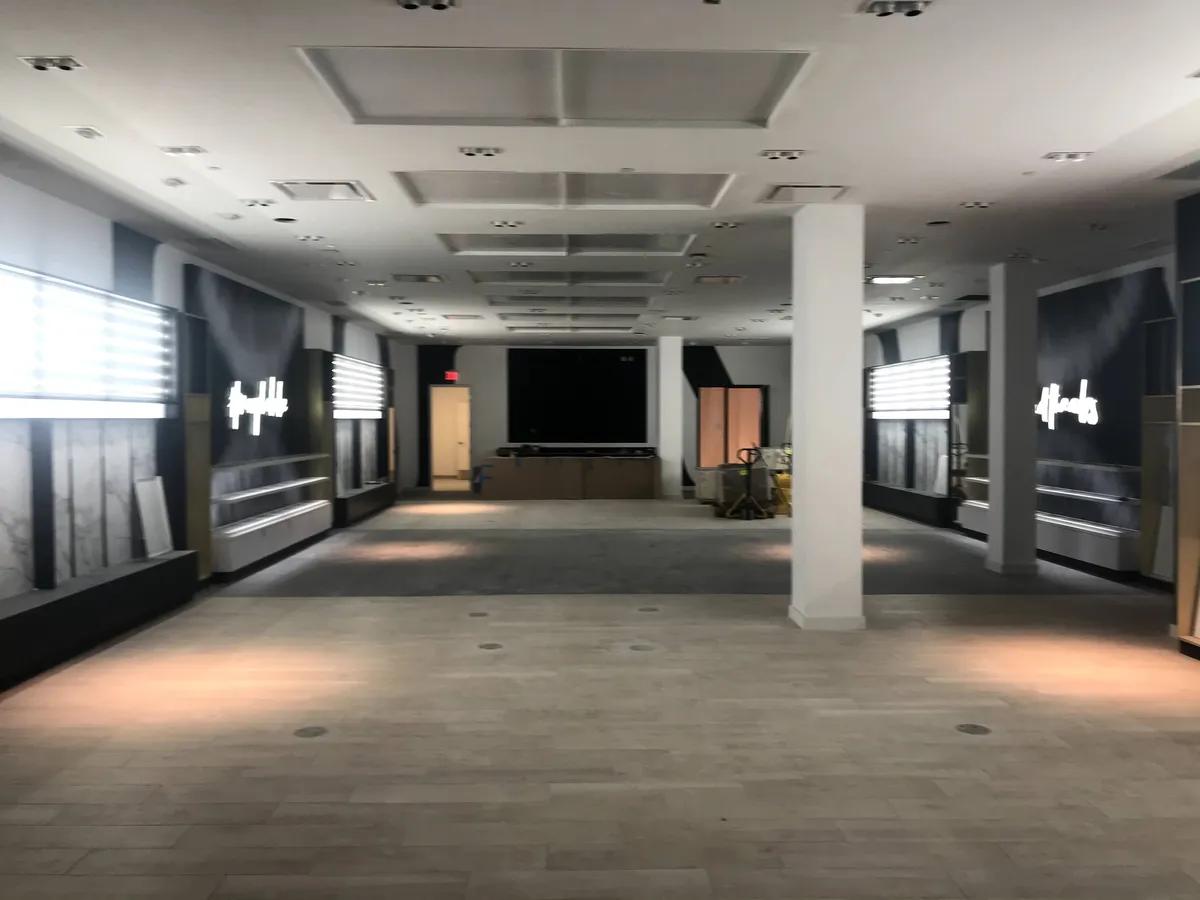

M·A·C Cosmetics Retail Buildout
Work in Action
Operating as an industrial and commercial painting contractor, DL Coatings LLC completed precision interior painting for two M·A·C Cosmetics retail boutiques at Arrowhead Towne Center in Glendale and Tucson Mall in Tucson, Arizona. Because active general contracting trades occupied the stores during daytime hours, our crew mobilized strictly on overnight shifts to execute the project across carefully coordinated phases without site conflict or delays.
High-end cosmetic environments require flawless architectural finishes. Technicians implemented extensive containment, covering finished tile flooring, built-in display vitrines, lighting valances, and retail fixtures with poly sheeting and precision edge tape. The crew prepped and primed all drywall surfaces, applying smooth, uniform coatings across high-traffic accent walls, structural columns, and recessed coffered ceiling channels. Every morning, DL Coatings left the storefront fully cleaned and decontaminated, allowing other trades to resume on schedule.
Project snapshot
Client
M·A·C Cosmetics
Facility type
High-End Commercial Retail Boutique / Mall Tenant Buildout
Two AZ Locations:
Arrowhead Towne Center
7700 W. Arrowhead Towne Center,
Glendale, AZ
Tucson Mall
4500 N. Oracle Rd, Tucson, AZ
Approximate size
~2,200 – 3,500 sq. ft. per boutique retail location
Duration
Multi-phase rollout executed strictly on night shifts around daytime trade schedules
Coating systems
Heavy floor, display, and millwork poly containment; bonding primer; seamless drywall level-5 skim patching; followed by multi-coat premium architectural satin finishes on feature walls, coffered ceilings, and display columns
— CASE STUDY —

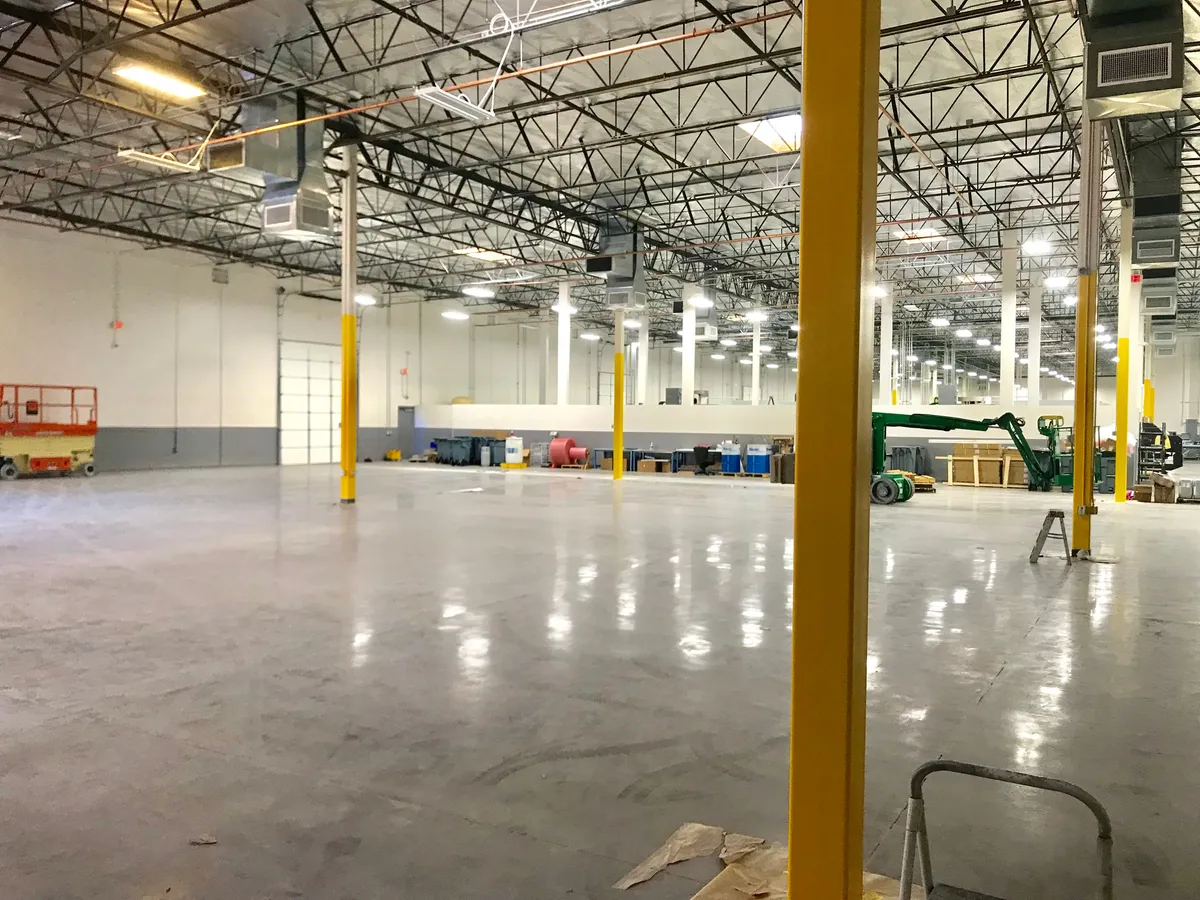

Pharmaceutical Manufacturing & Distribution Warehouse
Work in Action
Industrial and commercial painting contractor DL Coatings: clean factory wall coatings, OSHA yellow pillars, and complete poly containment systems.
DL Coatings LLC delivers high-containment industrial and commercial painting contractor solutions inside sensitive manufacturing and pharmaceutical production facilities. Within this operational pill factory, our team repainted large interior warehouse walls and coated structural steel support pillars in high-visibility OSHA Safety Yellow. Working adjacent to live cleanroom environments and active packaging operations, our crew constructed full floor-to-ceiling poly containment barriers to capture dust and prevent airborne overspray. Through controlled roller applications, MEWP scissor lift positioning, and strict safety compliance, DL Coatings LLC completed this manufacturing plant upgrade with zero disruption to daily pharmaceutical production lines.
Project snapshot
Client
Confidential Pharmaceutical Manufacturer
Facility type
Pharmaceutical Production & Cleanroom-Adjacent Warehouse Facility
Location
Phoenix, Arizona (I-10 / Salt River Industrial Corridor)
Approximate size
~45,000 – 60,000 sq. ft. high-bay industrial plant
Duration
5 Days
Coating systems
Full-height poly containment wall masking, high-adhesion wall primers, low-VOC washable commercial wall coatings, and high-gloss OSHA Safety Yellow acrylic enamel on structural steel columns
— CASE STUDY —

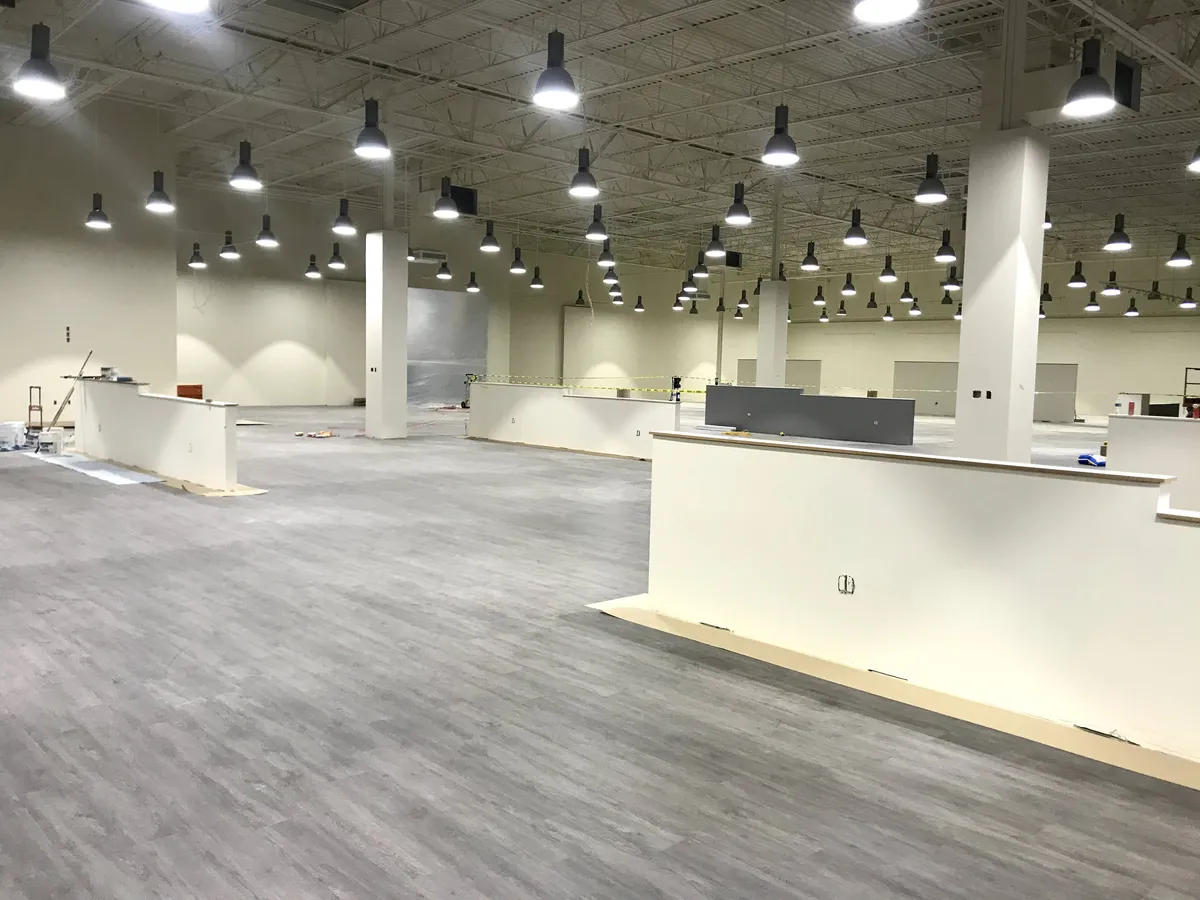

Commercial Showroom & Distribution Facility
Work in Action
Serving as an industrial and commercial painting contractor, DL Coatings LLC completed an extensive interior buildout across an expansive commercial retail showroom and distribution center in the greater Phoenix area. Spanning tens of thousands of square feet of open-concept floor space, the facility required a bright, uniform finish across towering perimeter drywall surfaces, interior partition half-walls, and high-load structural columns.
To protect newly installed wood-plank flooring and customer service counters, our technicians executed precision floor-to-wall paper and poly drop masking throughout the entire active footprint. Working seamlessly around electrical, lighting, and mechanical subcontractors, DL Coatings patched, primed, and sprayed durable architectural coatings to provide high light reflectivity, scuff resistance, and lasting aesthetic quality before tenant merchandise load-in.
Project snapshot
Client
Commercial Retail & Logistics Facility (Bob's Discount Furniture Showroom)r
Facility type
Large-Scale Commercial Showroom / Open-Bay Warehouse Interior
Location
Phoenix Metropolitan Area, Arizona
Approximate size
~30,000 – 40,000 sq. ft. open floor plan
Duration
Fast-track completion coordinated with ongoing interior tenant improvements
Coating systems
Full flooring and fixture masking, drywall seam prep and drywall primer, commercial-grade washable wall finishes, and structural column coatings
Want to see how we would scope your building?
That is a more useful test than a portfolio page. Send us the facility and the constraint you are working around, and you will have a line-item proposal typically within 24 to 48 hours of the walkthrough.
